Home  >  Motors  >  OEM Replacement  >  MORE  > OEM Replacement,1100RPM

OEM Replacement,1100RPM

No. of Poles 6 Motor Type PSC Enclosure OAO HP (Max.) 1/6 Voltage 208-230 Mounting Extended Studs Lead End, Belly Band Mount Speeds 3 Hz 60 Rotation REV RPM Range 1100 NEMA Frame Size 42 Phase Single Standards UR/CSA FLA 0.99 Bearing Ball Lead Length (in.) 42 Thermal Protection Auto Ambient Deg C 40 Ins. Class B Shaft Dia. (in.) 1/2 Capacitor Included No Shaft Length (in.) 2.2 Capacitor Rating 5/370 Replaces HQ 1052662EM; 48HXCLW-1562 Service Factor 1.0 Duty Continuous
Item #: D1071
OEM Replacement,110

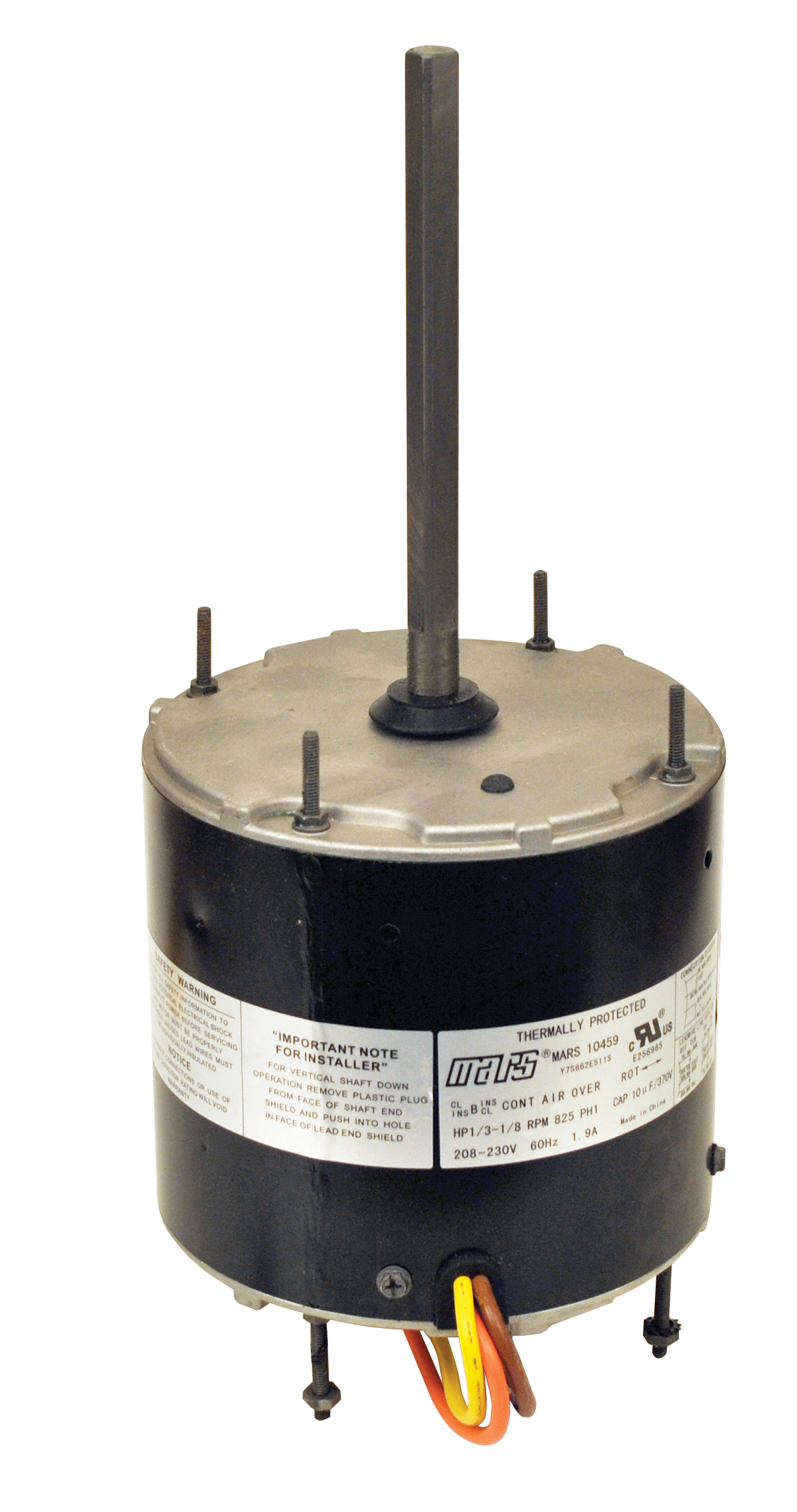

OEM Direct Replacement Motor

  • 5" Diameter - 42 Frame
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 42" Leads with Terminal Housing
  • Open Shell, Enclosed OSE End-Frame
  • Motors

    No. of Poles
    6
    Motor Type
    PSC
    Enclosure
    OAO
    HP (Max.)
    1/6
    Voltage
    208-230
    Mounting
    Extended Studs Lead End, Belly Band Mount
    Speeds
    3
    Hz
    60
    Rotation
    REV
    RPM Range
    1100
    NEMA Frame Size
    42
    Phase
    Single
    Standards
    UR/CSA
    FLA
    0.99
    Bearing
    Ball
    Lead Length (in.)
    42
    Thermal Protection
    Auto
    Ambient Deg C
    40
    Ins. Class
    B
    Shaft Dia. (in.)
    1/2
    Capacitor Included
    No
    Shaft Length (in.)
    2.2
    Capacitor Rating
    5/370
    Replaces
    HQ 1052662EM; 48HXCLW-1562
    Service Factor
    1.0
    Duty
    Continuous
