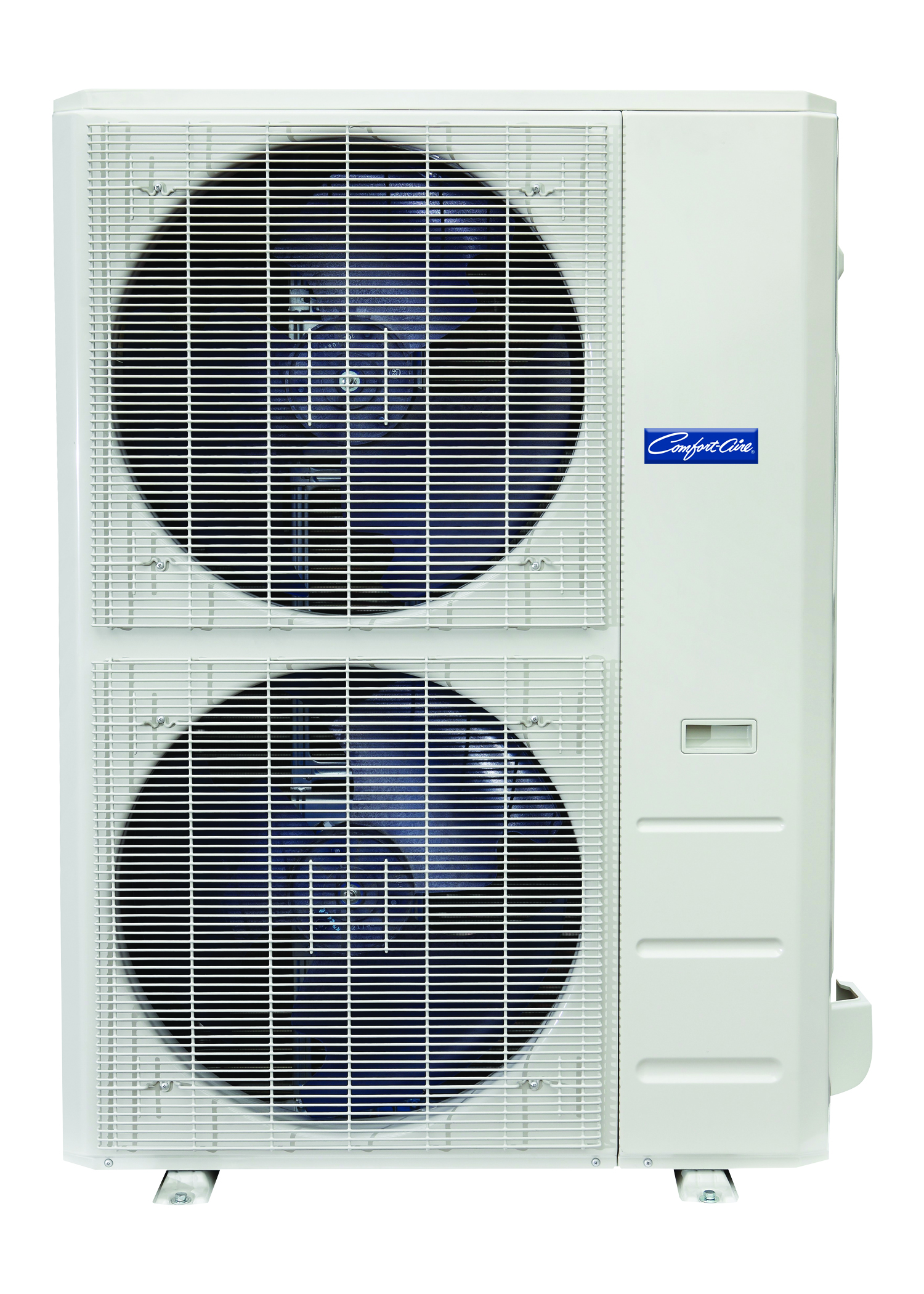

CONDENSER 48K 230V

SIDE DISCHARGE
Coil Type Fin & Tube SEER (Min.) 15 Capacity (Tons) 4 Refrigerant R-410A Voltage 208/230V-1-60 Compressor Rotary No. of Stages Inverter Width (in.) 37.48 SEER2 (Min.) 15.9 RLA 22.1 Warranty Compressor 7 yr. Parts 5 yr. EER2 (Min.) 11 Circuit Breaker 50 Depth (in.) 16.34 Min. Circuit Ampacity 32 Cabinet Galvanized steel, painted finish Sound Rating (dBA) 65 Connection Size (in.) 3/8 - 7/8 Serviceability Easy access to all components for easy service Shipping Wt (lbs) 110.8 Height (in.) 52.48 Matches See www.ahridirectory.org Test Listing UL US and Canada NOTE Efficiences/capacities may vary based on airflow Certification AHRI 210/240 Factory Line-Set Charge (ft.) 25
Item #: CMA1548SA-1
CONDENSER 48K 230V

Our 15 SEER A/C condensers are compact to fit tight spaces

  • AHRI matched to CCG, MCG, coils
  • For installation in all regions

A/C Condensers

Coil Type
Fin & Tube
SEER (Min.)
15
Capacity (Tons)
4
Refrigerant
R-410A
Voltage
208/230V-1-60
Compressor
Rotary
No. of Stages
Inverter
Width (in.)
37.48
SEER2 (Min.)
15.9
RLA
22.1
Warranty
Compressor 7 yr. Parts 5 yr.
EER2 (Min.)
11
Circuit Breaker
50
Depth (in.)
16.34
Min. Circuit Ampacity
32
Cabinet
Galvanized steel, painted finish
Sound Rating (dBA)
65
Connection Size (in.)
3/8 - 7/8
Serviceability
Easy access to all components for easy service
Shipping Wt (lbs)
110.8
Height (in.)
52.48
Matches
See www.ahridirectory.org
Test Listing
UL US and Canada
NOTE
Efficiences/capacities may vary based on airflow
Certification
AHRI 210/240
Factory Line-Set Charge (ft.)
25
