Home  >  Motors  >  HVAC  >  Oil Burner  > 1/7,3450,SEMI,48M,1/60/115

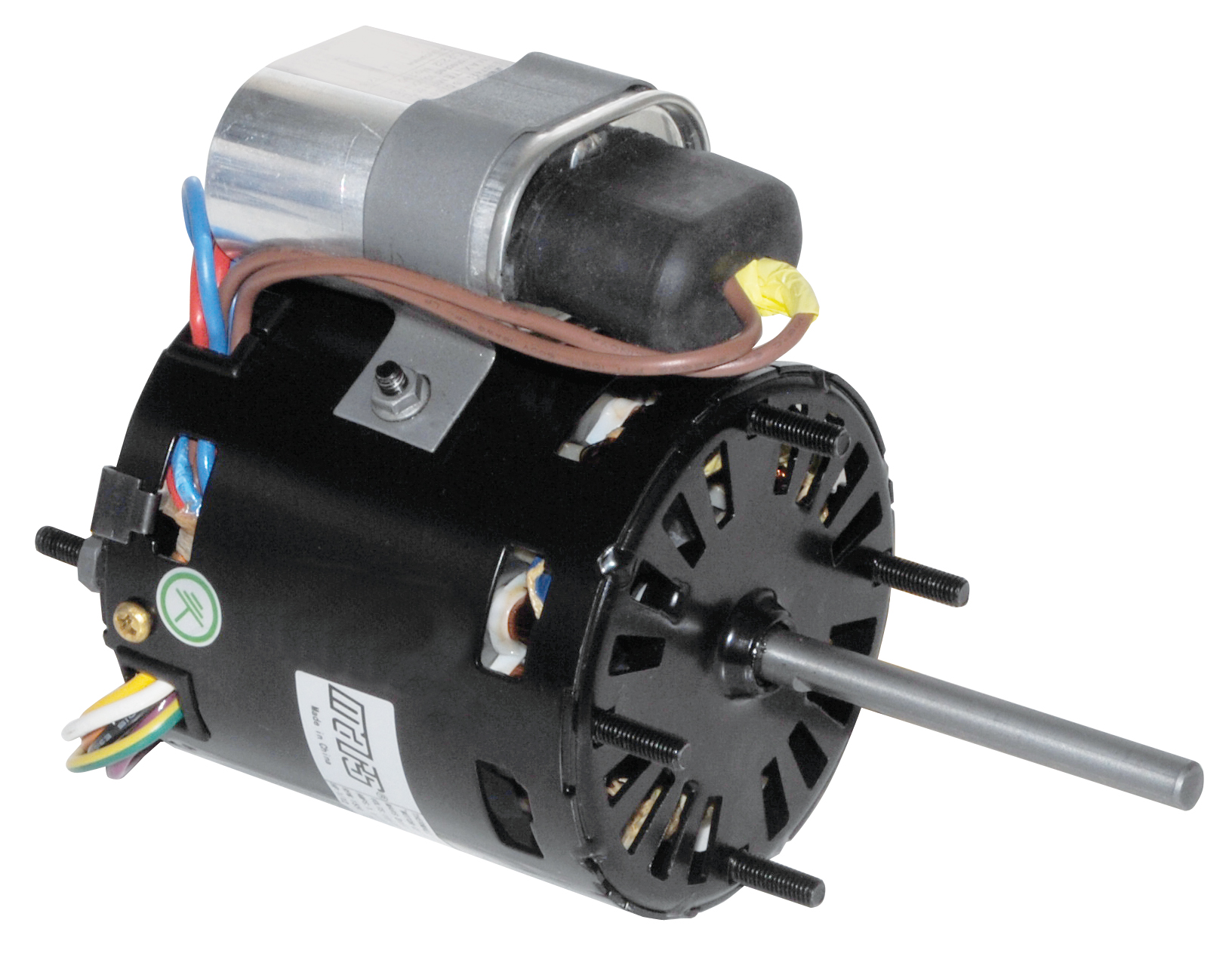

1/7,3450,SEMI,48M,1/60/115

No. of Poles 2 Motor Type Split Phase Enclosure Semi Enclosed HP (Max.) 1/7 Voltage 115 Mounting Round Speeds 1 Hz 60 Rotation Selective CW RPM Range 3450 NEMA Frame Size 48MZ Phase Single Standards UR/CSA FLA 2.3 Bearing Ball Lead Length (in.) 25 Thermal Protection Manual Ambient Deg C 40 Ins. Class B Shaft Dia. (in.) 1/2 Shaft Length (in.) 1.84 Service Factor 1.0 Duty Continuous
Item #: O100
1/7,3450,SEMI,48M,1

Fan & Blower Motor

  • Manual reset thermal protection
  • Continuous air over duty design
  • Double-shielded ball bearings
  • Various Mounting Configurations
  • Motors

    No. of Poles
    2
    Motor Type
    Split Phase
    Enclosure
    Semi Enclosed
    HP (Max.)
    1/7
    Voltage
    115
    Mounting
    Round
    Speeds
    1
    Hz
    60
    Rotation
    Selective CW
    RPM Range
    3450
    NEMA Frame Size
    48MZ
    Phase
    Single
    Standards
    UR/CSA
    FLA
    2.3
    Bearing
    Ball
    Lead Length (in.)
    25
    Thermal Protection
    Manual
    Ambient Deg C
    40
    Ins. Class
    B
    Shaft Dia. (in.)
    1/2
    Shaft Length (in.)
    1.84
    Service Factor
    1.0
    Duty
    Continuous
